Body to chassis work..

By basil
2 Comments

Just wanted to toss up some pictures of the front-end stance (top row) some folks on ShopTalkForums wanted profile shots. These aren’t full profile but it’s all we have at the moment.

The first picture is the result of the initial body to chassis merge. I wanted to see if we could go lower. Kevin then tweaked the suspension to drop the front a bit more. I keep forgetting that these are 17 inch wheels – and as pictured, no rubbing, lock to lock! Trying to find the optimal mix between aesthetics and performance.

: Getting there.

: 17s on a Ghia.

: Lowered a bit more after initial body placement.

: Bader-like in stance. No adjustments yet.

: Got stance?

: Slightly rolled fenders.

: Wheel profile.

: Exhaust view from down low.

Ghias have narrow rear wheel wells. So on the rear we rolled the fenders a bit to comfortably fit the 205s, but now we can (and will, eventually) go to 215s with no problem.

build updates chassis design

19

Mar

The Basilari 306R chassis featured at Hot VWs Drag Day

By basil
No Comments

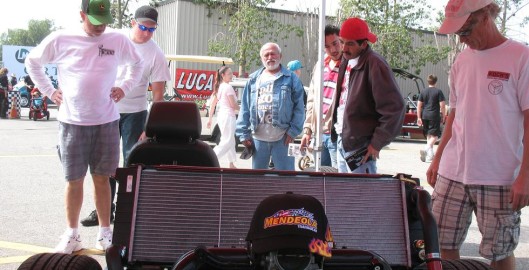

First public showing of the Basilari 306R (well, the chassis at least) and apparently, the chassis was a hit! Kevin said that his booth had visitors checking on the chassis all day long. Photos below!

“The Drag Day is an event held twice a year in Southern California. Since we brought this event back just over 10 years ago, it has been a tremendous success.”
-Bugin.com

build updates chassis cooling

25

Feb

Chassis assembly – coming together..

By basil
No Comments

Good updates received today. The Redline ECU was delivered. All parts have returned from powder coating and Kevin has installed the radiator frame and coolant pipes. The motor was re-bolted to the transaxle as well. The car is really, really coming together although we still have a long ways to go.

Next up – kafer bars, completion of the starter system, ECU installation, fuel system and finding some cheap tires.

: frontal view of the chassis, with brakes, radiator setup and black mamba shifter.

: Powder coated coolant pipes.

: Redline ECU (to be installed soon).

: Three cooling fans.

build updates chassis

04

Feb

Silver chassis and clutch access panel.

By basil
No Comments

Another quick update:

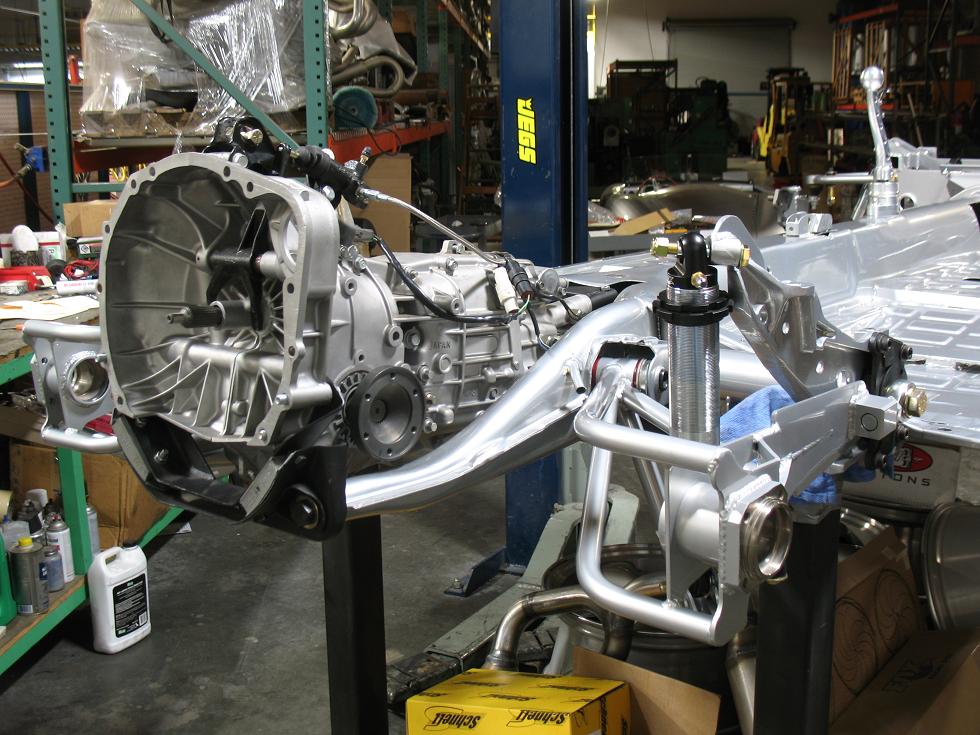

1. The chassis has returned from powder coating. It’s two powder coat layers – one silver and the other clear.

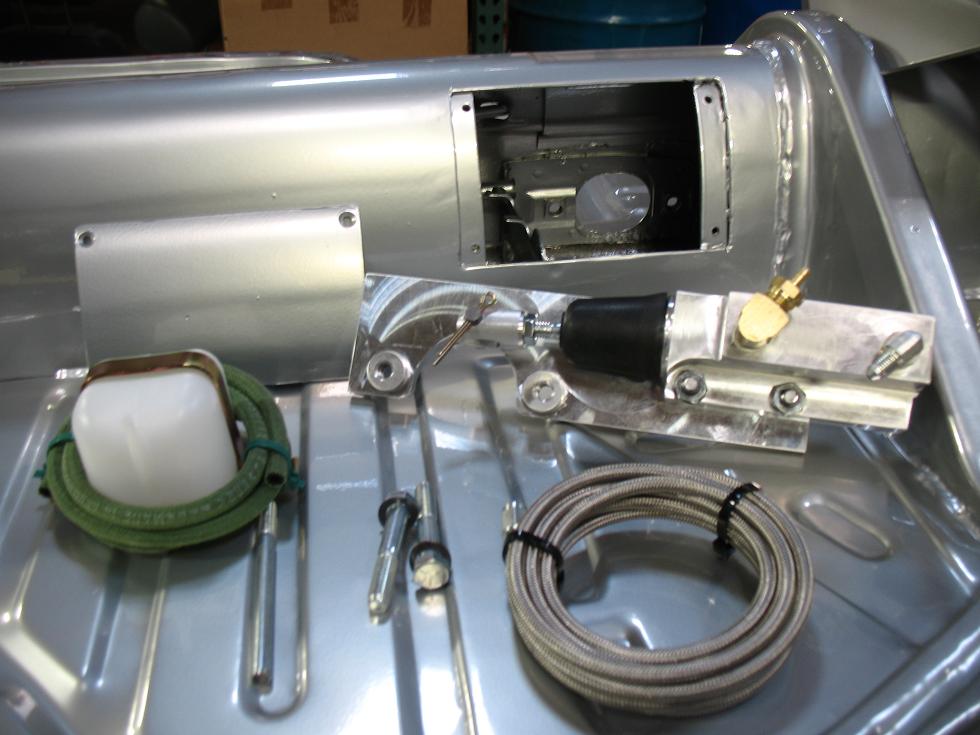

2. The second photo shows the access panel for the hydraulic clutch system.

This chassis is going to really pop when the dark red suspension components return from powder coating. We’ll try to hold off on updates until we get some significant progress on the chassis.

: Rebuilding after powder coating.

body build updates chassis

29

Jan

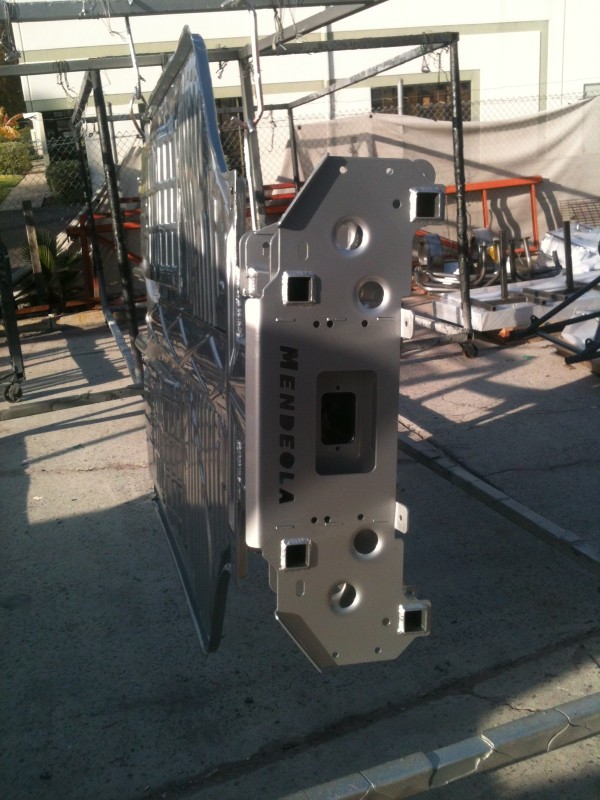

Powder coating preview..

By basil
No Comments

build updates chassis cooling engine transaxle

07

Jan

Body, engine and radiator fitment.

By basil
No Comments

Great updates today! Kevin did a preliminary mock fitting of the body on the chassis with the radiator and motor. It’s starting to look like a real car.

: First fitting of the engine, chassis and radiator.

: EZ30R and radiator fitment in low light Karmann Ghia.

: Exhaust – first round mockups.

: A little closer view of where the motor sits.

body build updates chassis interior performance

13

Dec

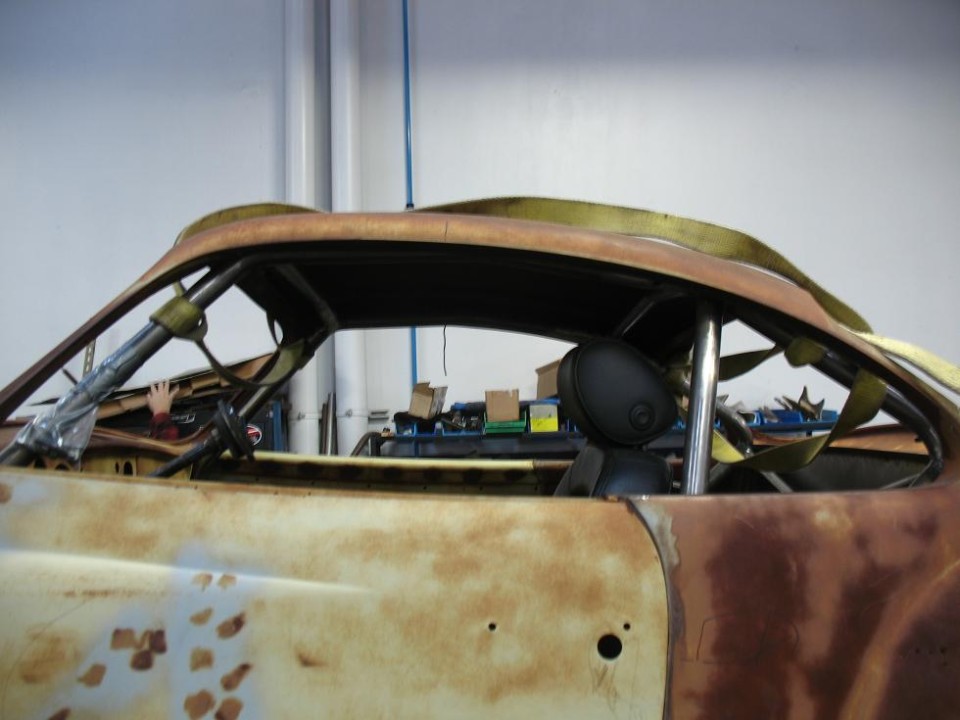

More roll cage photos..

By basil
No Comments

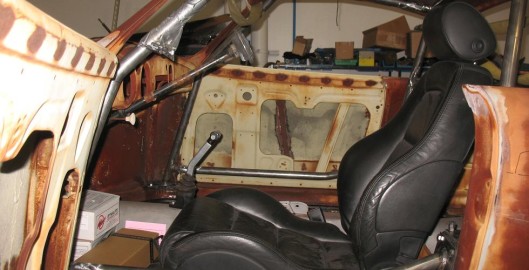

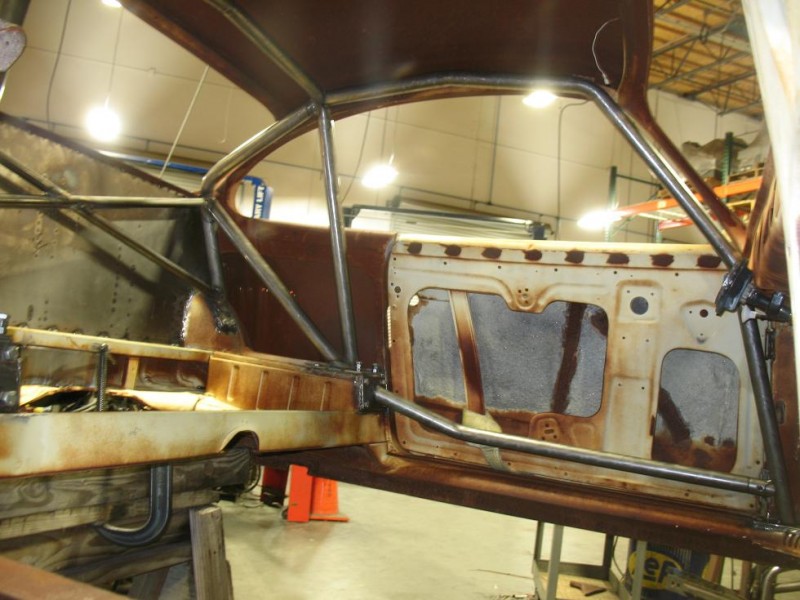

Roll Cage (driver’s side)

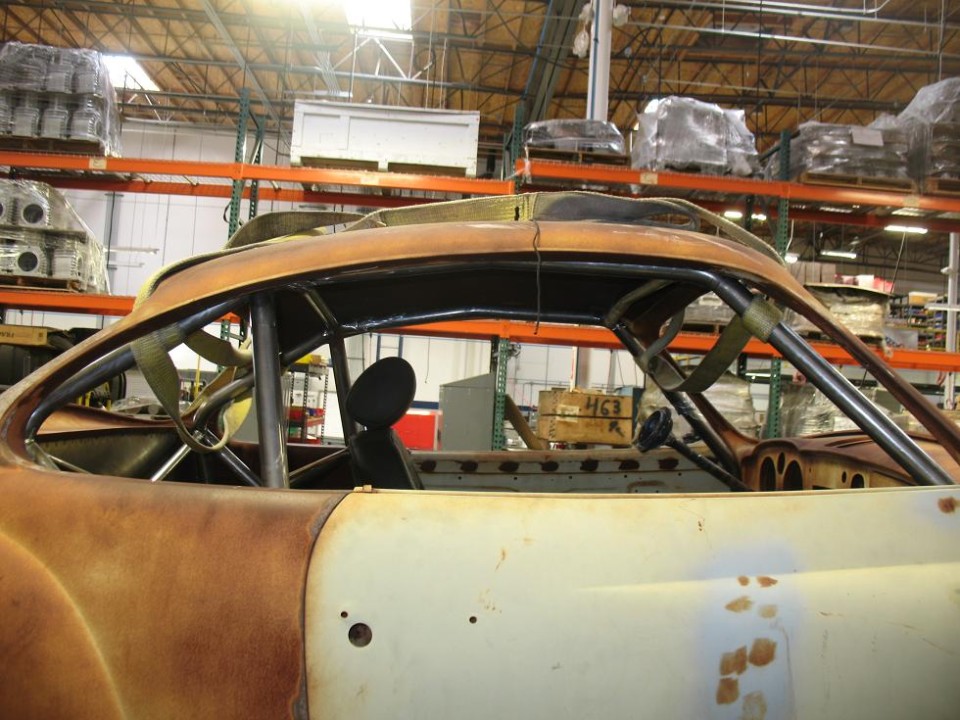

Karmann Ghia Roll Cage (bar view)

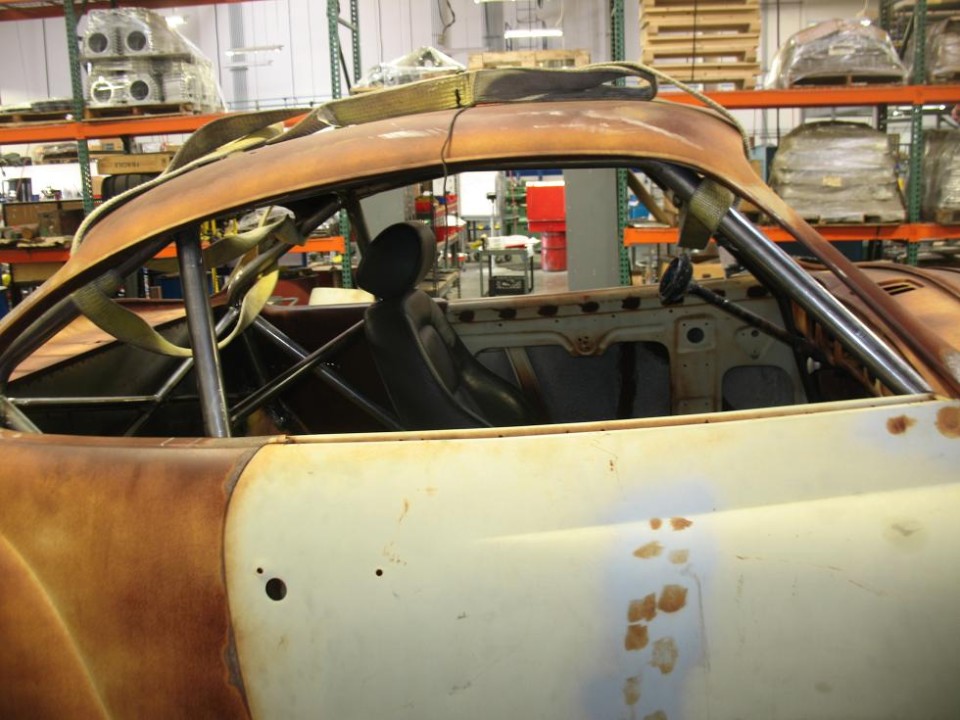

Karmann Ghia Roll Cage (driver’s side)

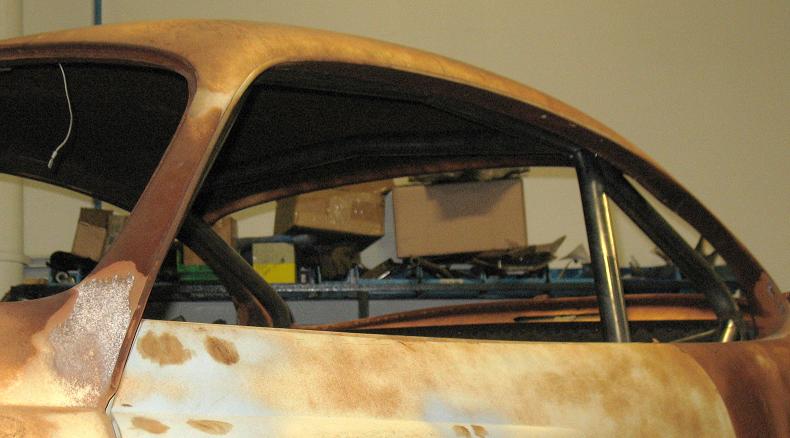

Photo updates for the roll cage build.

build updates chassis interior

30

Nov

Build update: roll cage and other items

By basil
No Comments

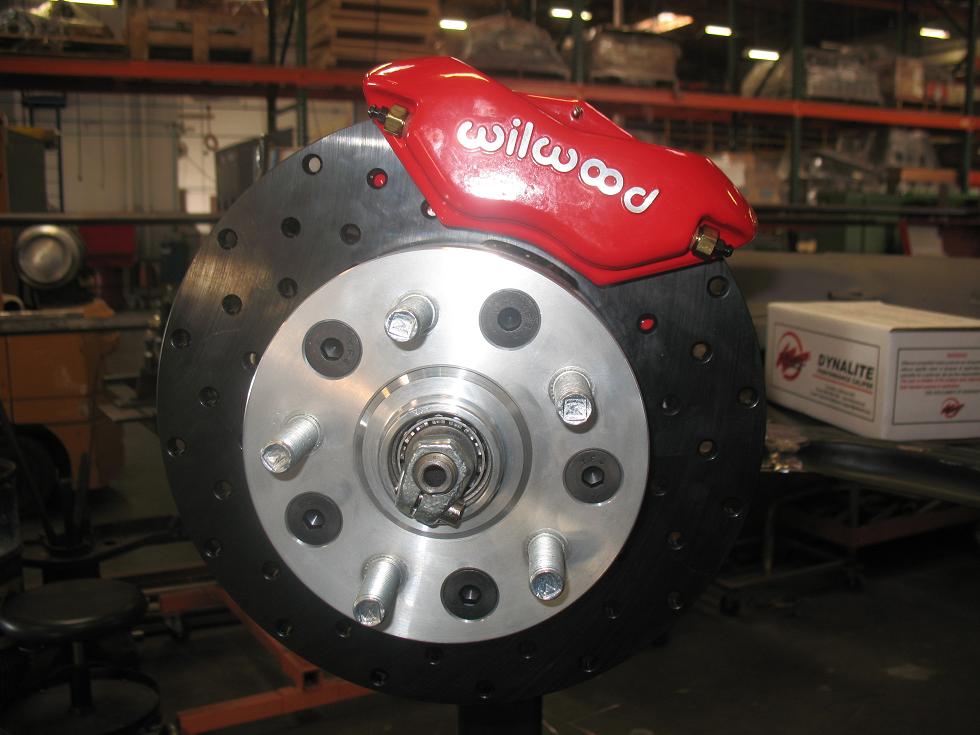

: New Airkewled brake kit with Wilwood calipers.

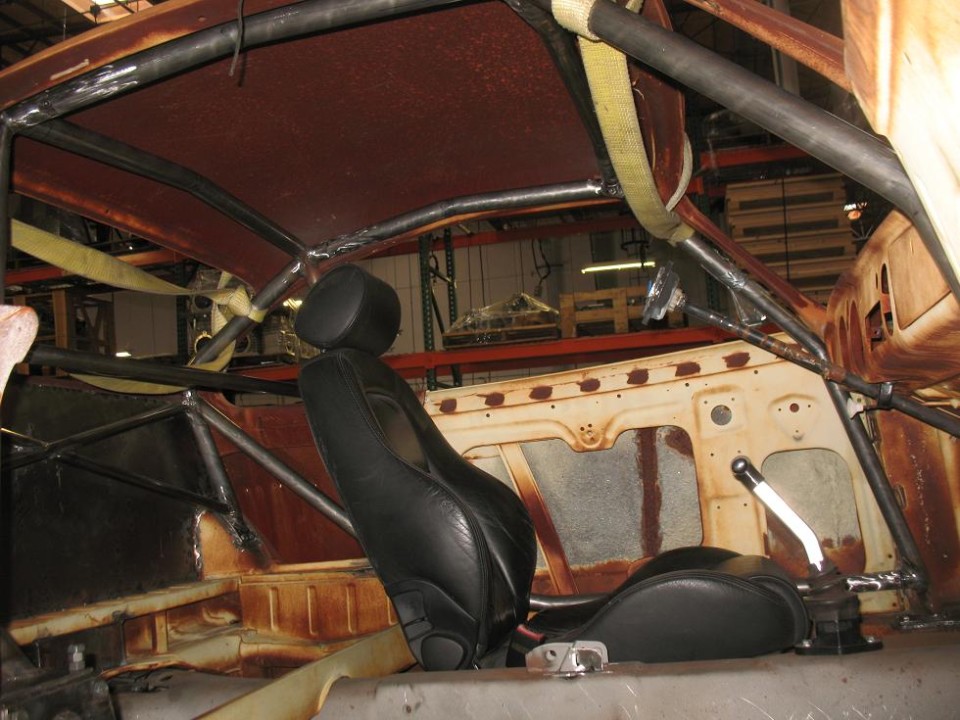

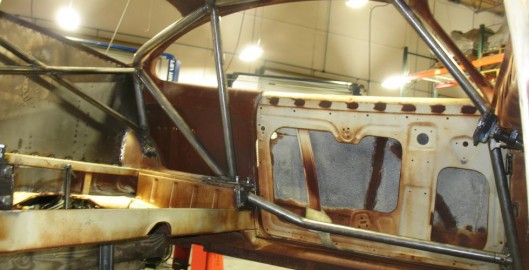

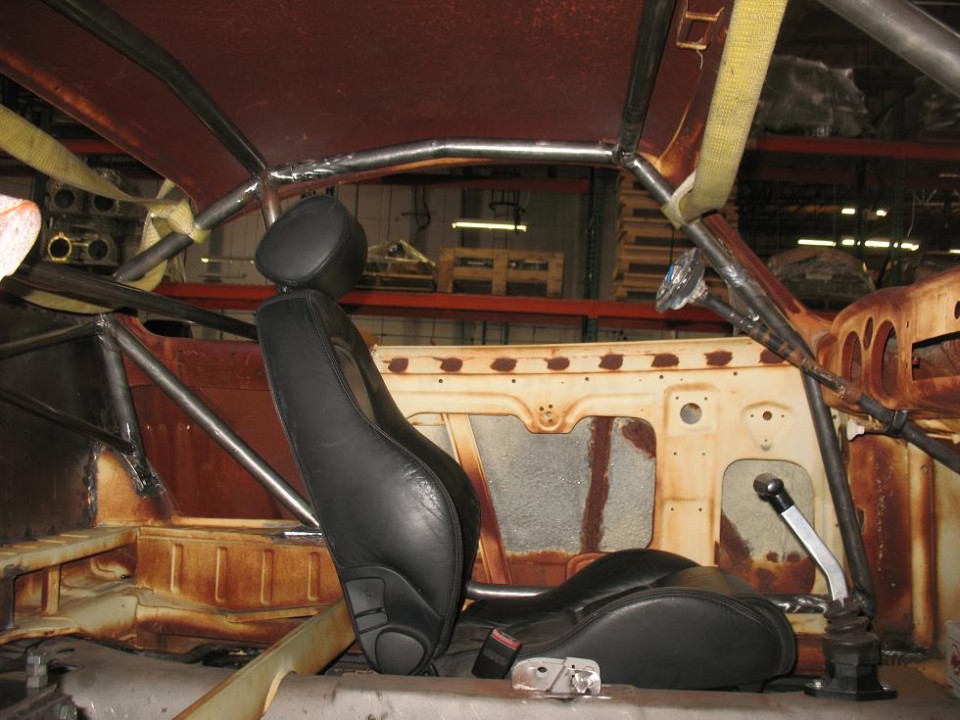

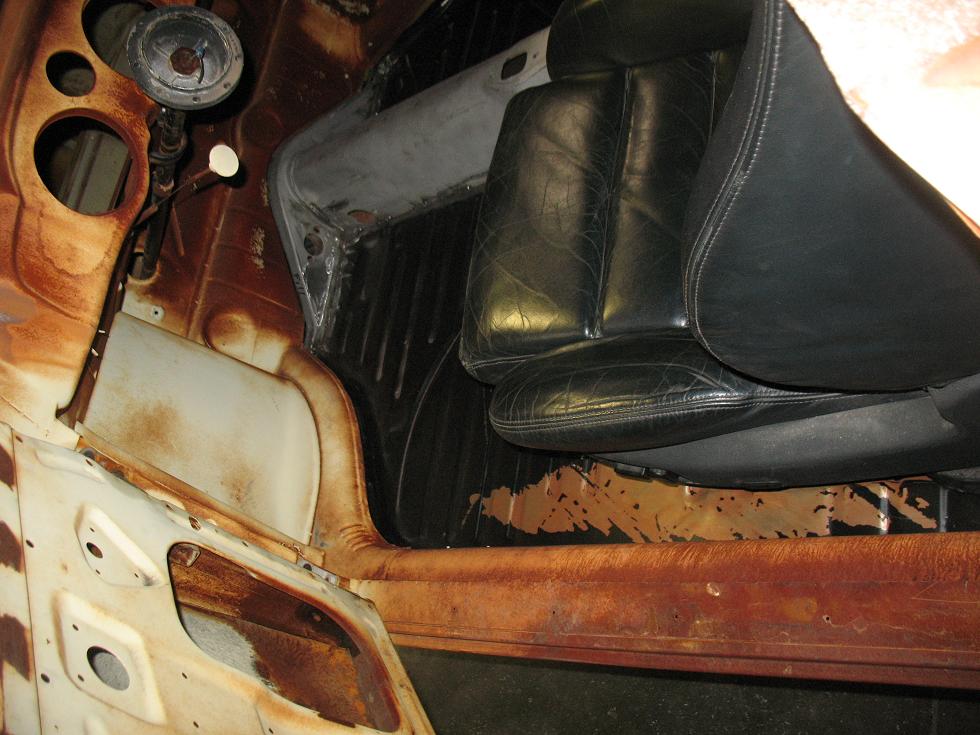

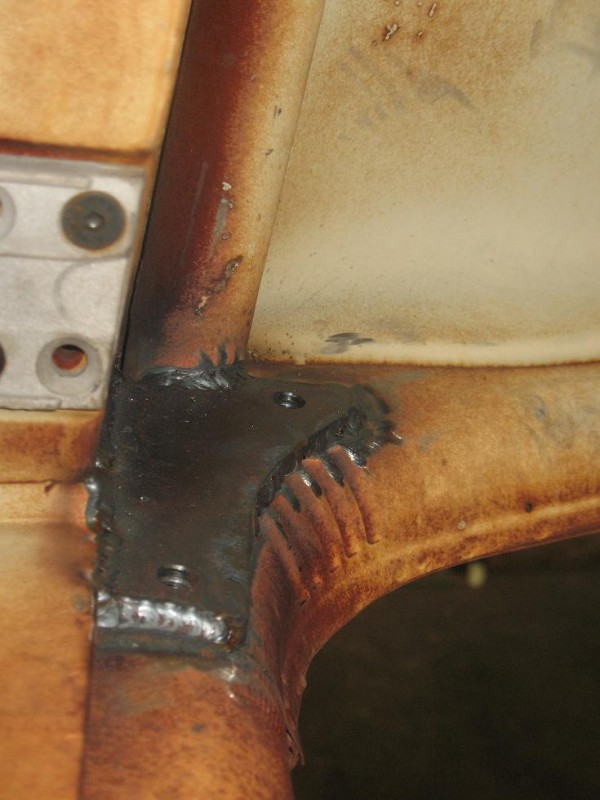

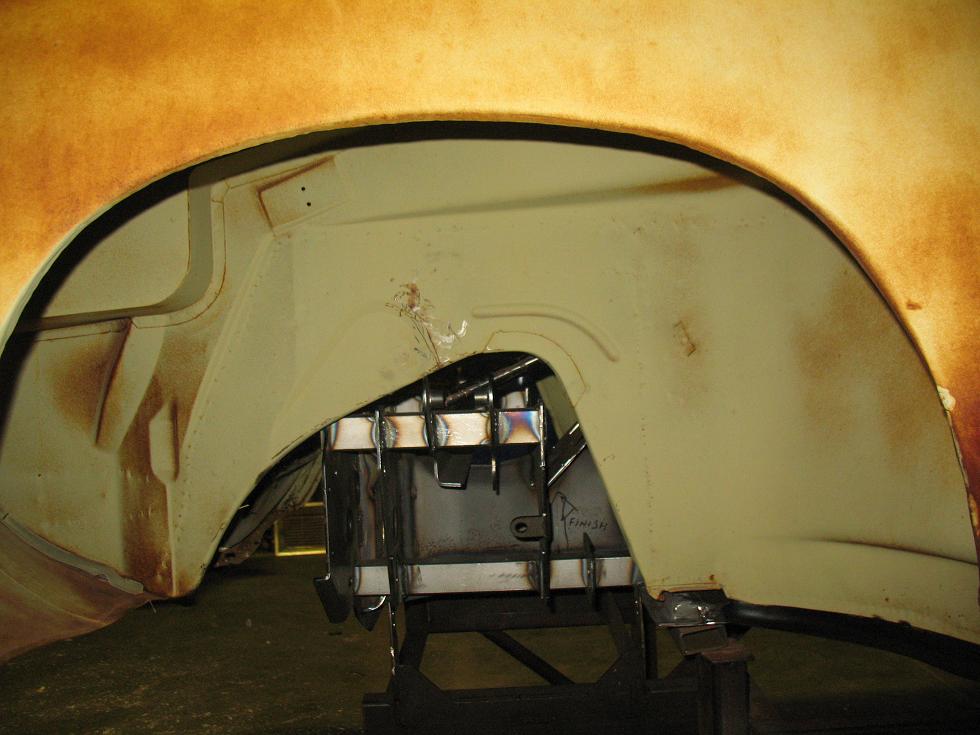

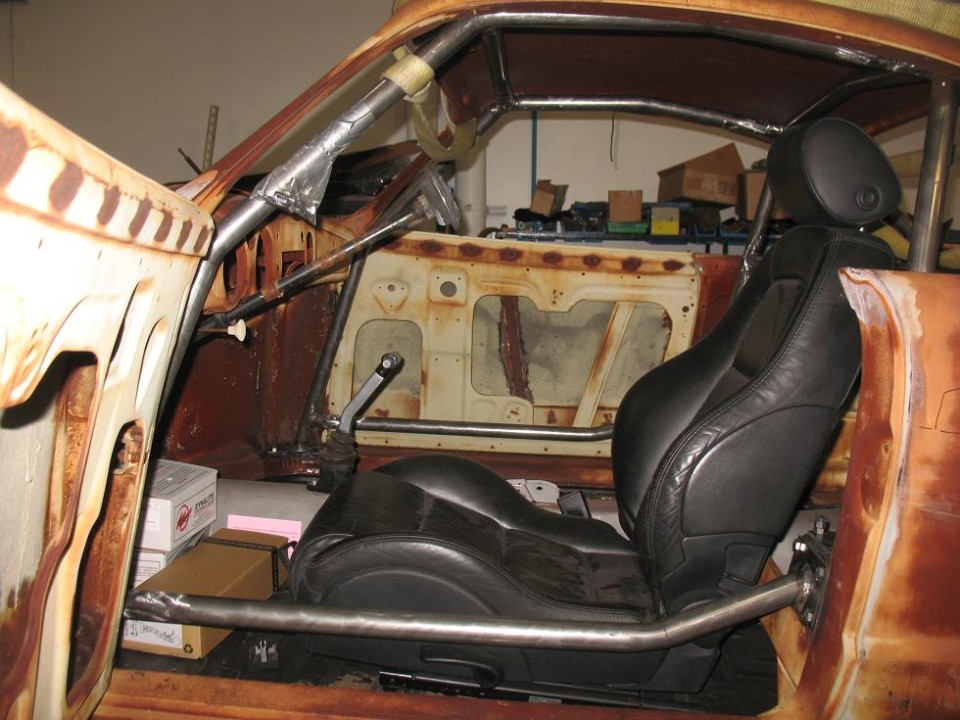

Good progress on the roll cage was made this week. In the photos you’ll see some welded bracing placed at strategic points on the body. The interior shots are of the custom bends and cross barred section in the rear. Kevin said there’s going to be about 50 feet of steel tubing used when it’s all said and done. And we’re going to power coat the whole monstrosity in the same red as will be found in the suspension components.

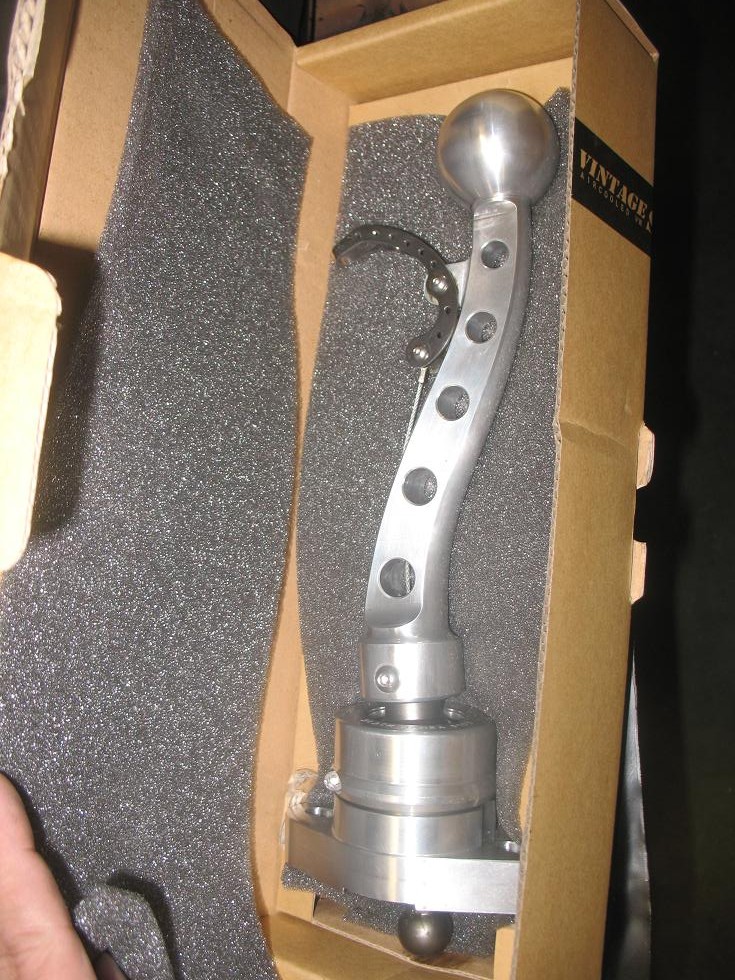

Other photos are more cosmetic – the black mamba shifter is shown (we’ve had it a while) and the rear Wilwood calipers with e-brake setup are in as well. We’re getting there!

[subscribe2]

chassis tires/wheels

10

Nov

Tire/wheel sizing tool.

By basil
No Comments

The whole tire/wheel sizing thing got to be real complicated for this build. At this point we’re looking at a set of 18 inch wheels and needed to do some preliminary sizing work. So, after an hour or so tinkering around in Excel we came up with the attached tire/wheel sizing calculator tool. You can put in a target size at the top and then try to “solve” for your tire/wheel combination. So we’ve got the rough dimension work out of the way but we’re still going to need to determine our optimal offsets and such.

We’ve uploaded the tool so that others can use it for testing. Here’s a screenshot of what it looks like (click the graphic to download):

Tire-sizing-sheet Tire/wheel sizing calculator (Excel).

This could help some other build projects out there. If you find it useful, let us know and we’ll link to your project!

chassis transaxle

08

Oct

Transaxle fitted in chassis.

By basil
2 Comments

The SubaruGears transaxle mounted and shifting! Kevin is an artist!

chassis

26

Sep

I got a feeling..

By basil
6 Comments

..that when this car is done, my conversations about it will go something like this (from the Fast and Furious):

Brian: So what’s your best time?

Dom: I’ve never driven her…

Brian: Why not?

Dom: She scares the shit out of me.

I’ve been reading some of the air cooled related forums and such, and people have mentioned how fast and scary some 150HP Ghias are (traditional air cooled motors and the 4-cylinder Subarus). Given the design goals for this project, I think this may be a car that’s too scary to drive. Seriously.

chassis

13

Sep

Built January 16, 1958 in Osanbrueck, Germany..

By basil
No Comments

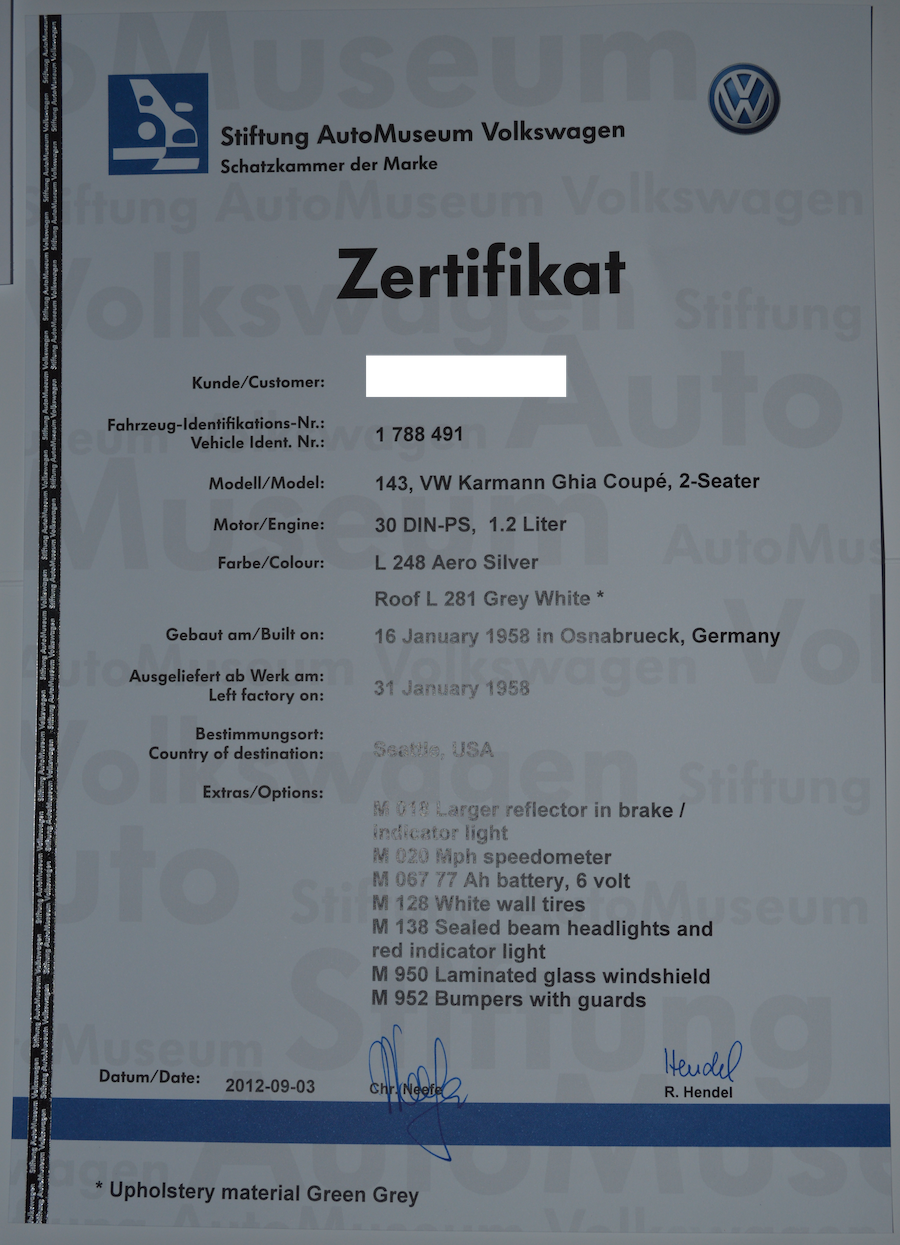

The “birth certificate” arrived from the Stiftung AutoMuseum Volkwagen! Original color was Aero Silver with Grey White roof. It’s cool to see this and know that the new color will be very similar, just a darker roof.

chassis performance suspension

13

Aug

Ghia Road Course Setup

By basil
No Comments

This is one of the best threads ever regarding suspension tuning on a Karmann Ghia:

The first question anyone who knows racing should ask here is why run a Ghia?

To win, you can’t just run a car you love and hope it will win. You have to run a car you know that can win.

The VW Karmann Ghia is that car. Here’s the bullet points of why it can win.

The Ghia is light, 2000lb. and under. In today’s racing world that is usually 1000lb. less than the competition. And by competition, we mean anything you pick out on the track to beat. Forget classes for a moment, think lap times.

The Ghia has the advantage of a rear engine, which greatly helps accelleration traction, and weight distribution in braking over almost any front engine car.

Old Doc Porsche knew what he was doing with the suspension design, and general chassis dynamics. It was the layout of his Grand Prix Auto Unions just before WWII. The Ghia’s chassis comes from an old race car, but one that works.

–FJCamper, ShopTalkForums thread (“Ghia Road Course Setup“)

build updates chassis

10

Aug

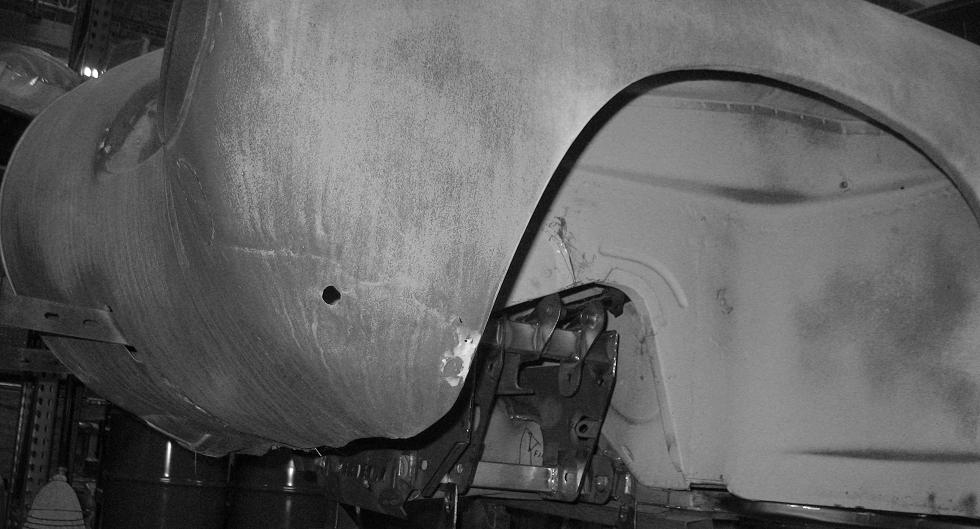

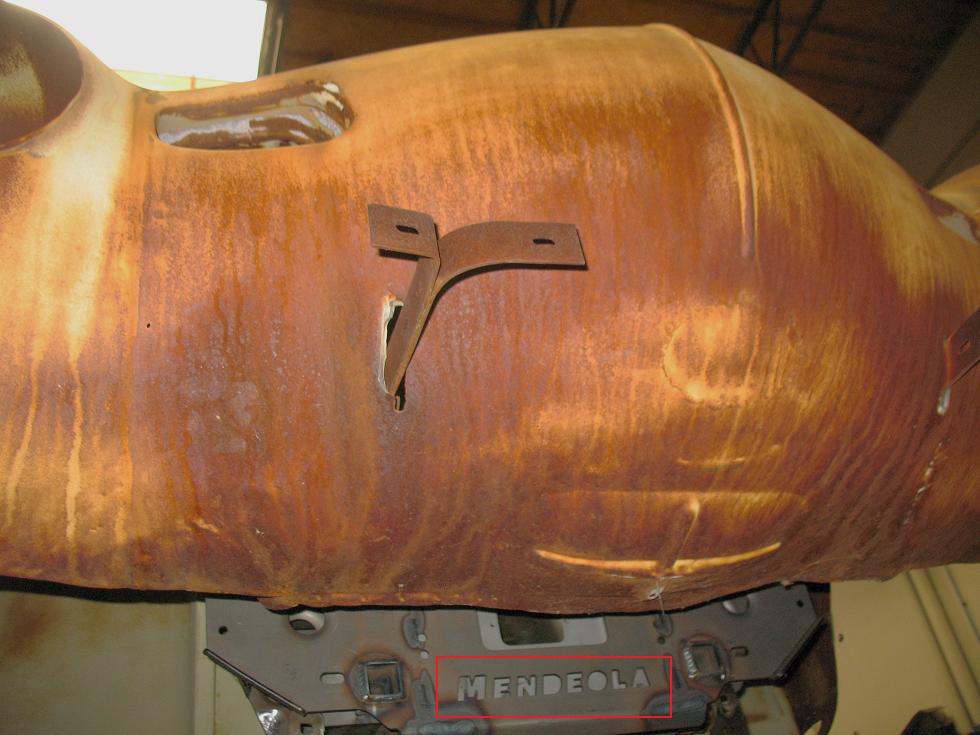

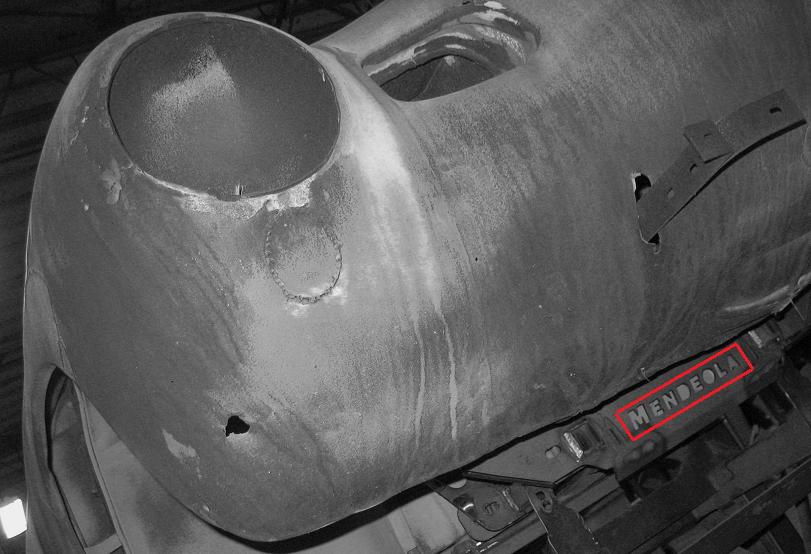

Mendeola chassis/body fitment

By basil
One Comment

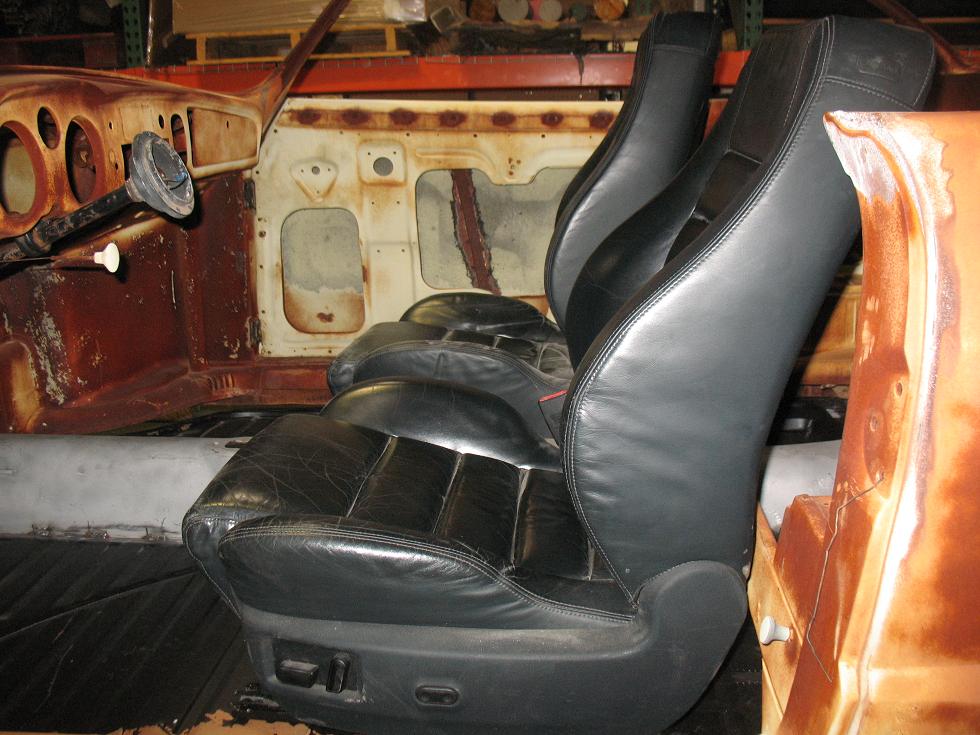

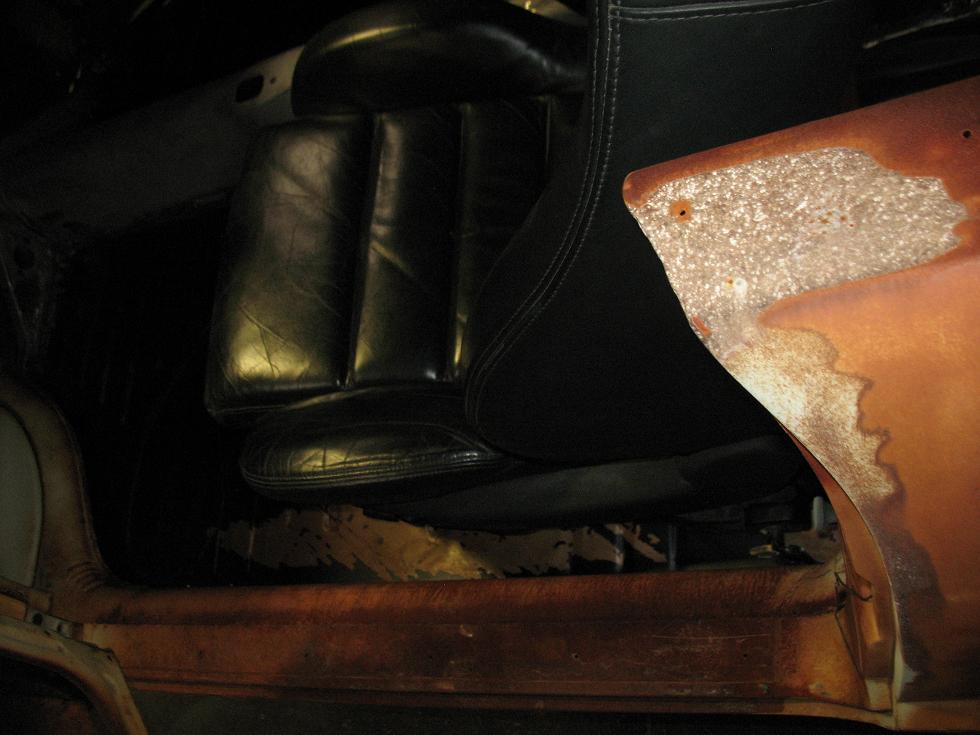

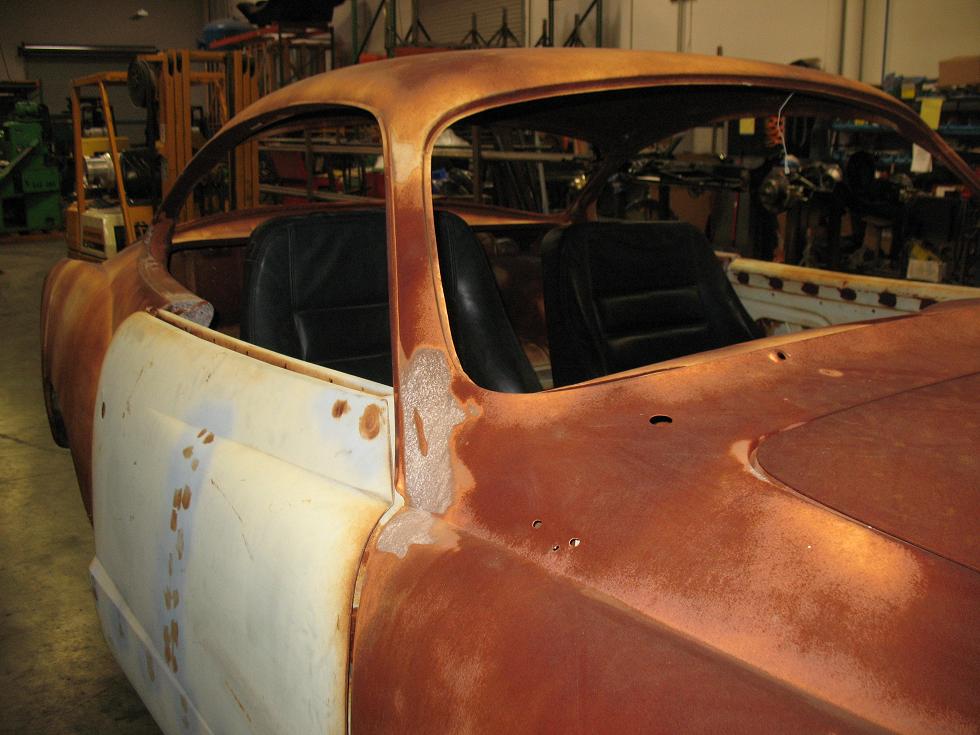

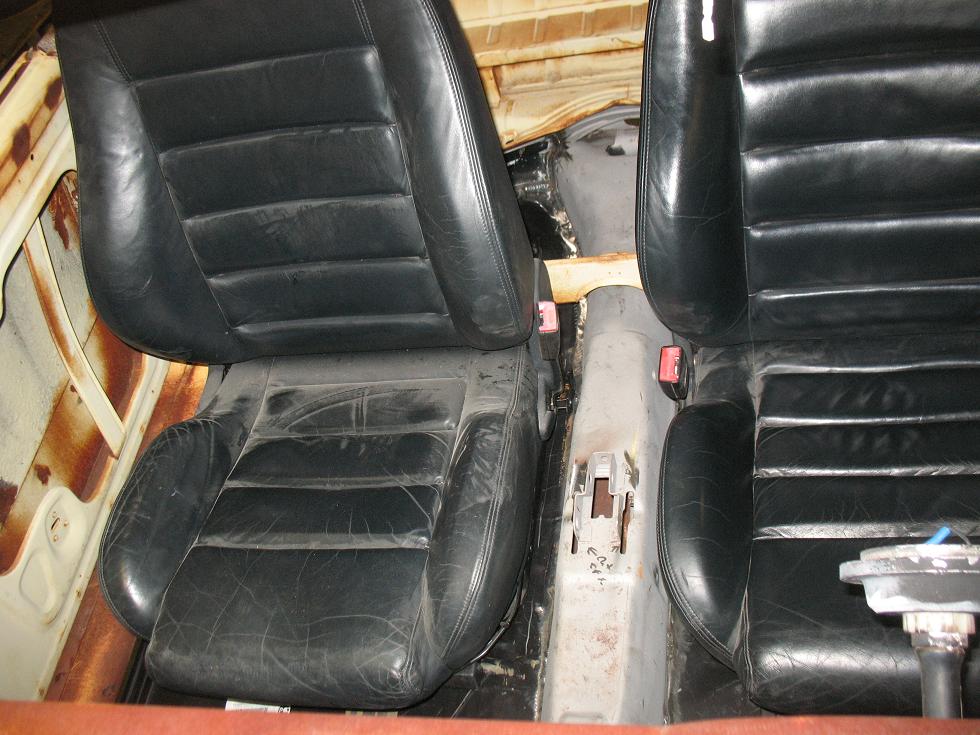

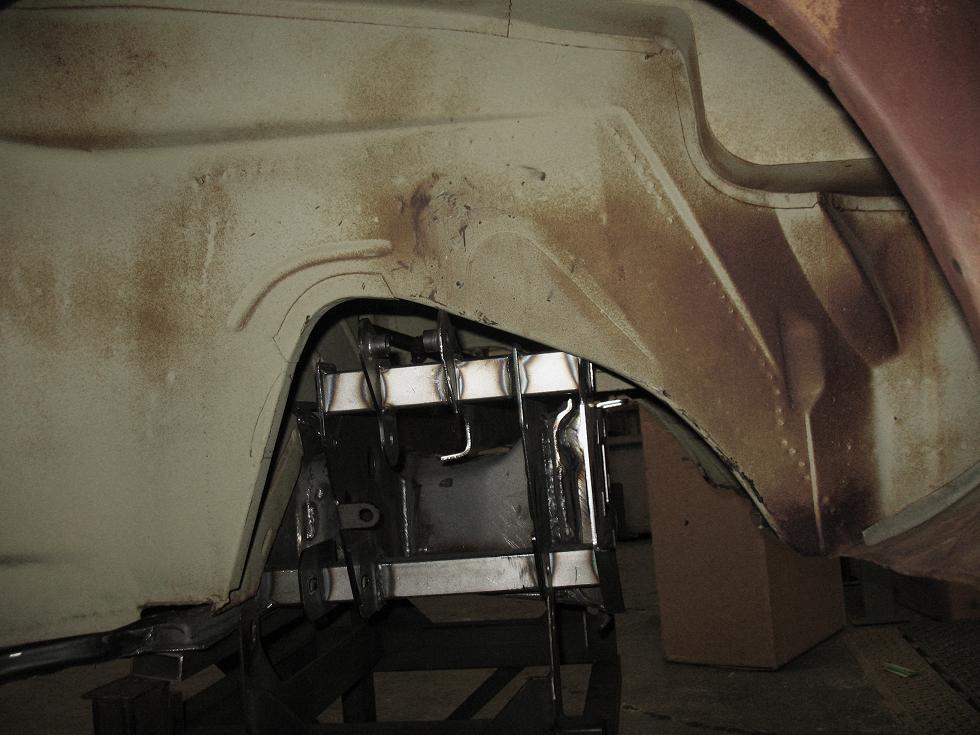

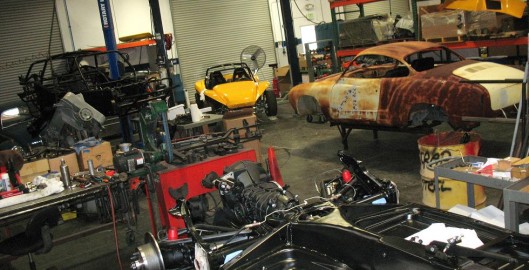

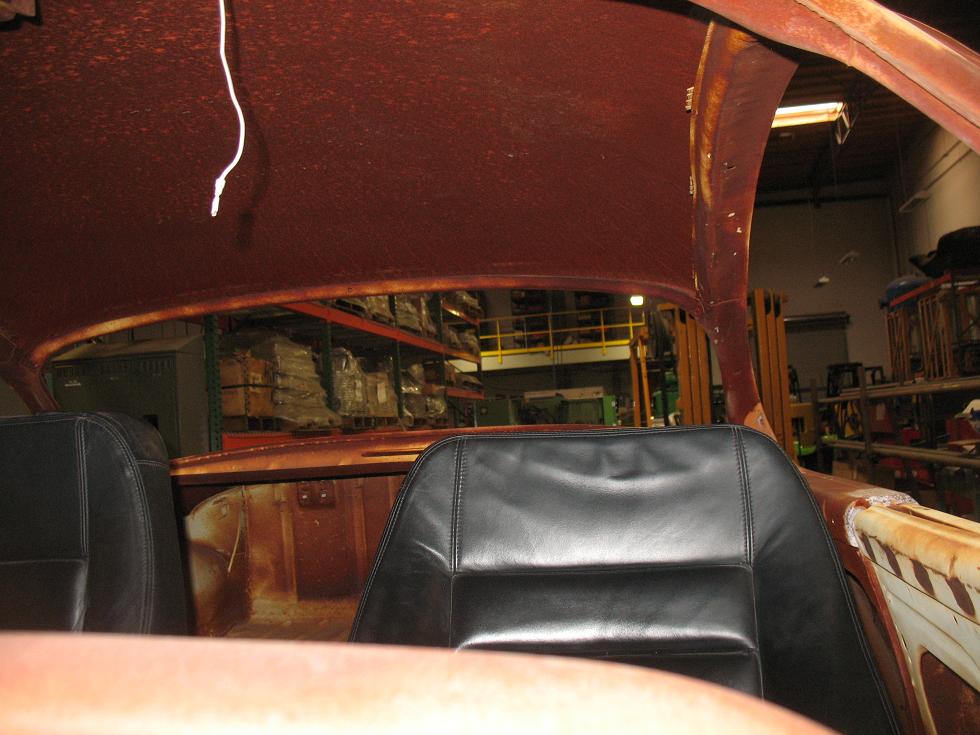

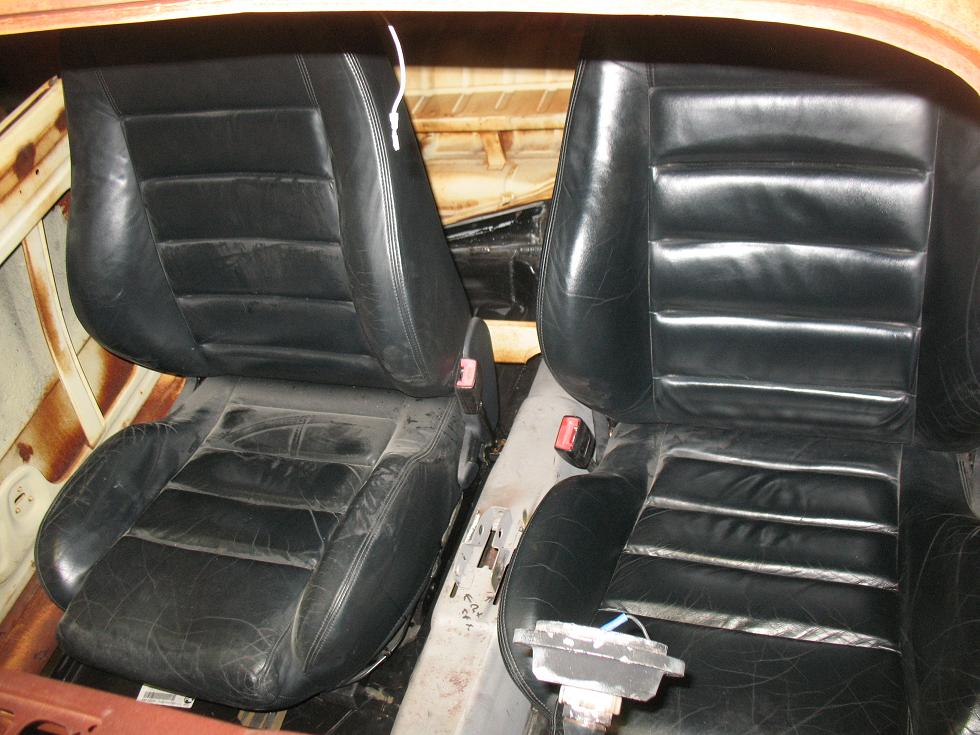

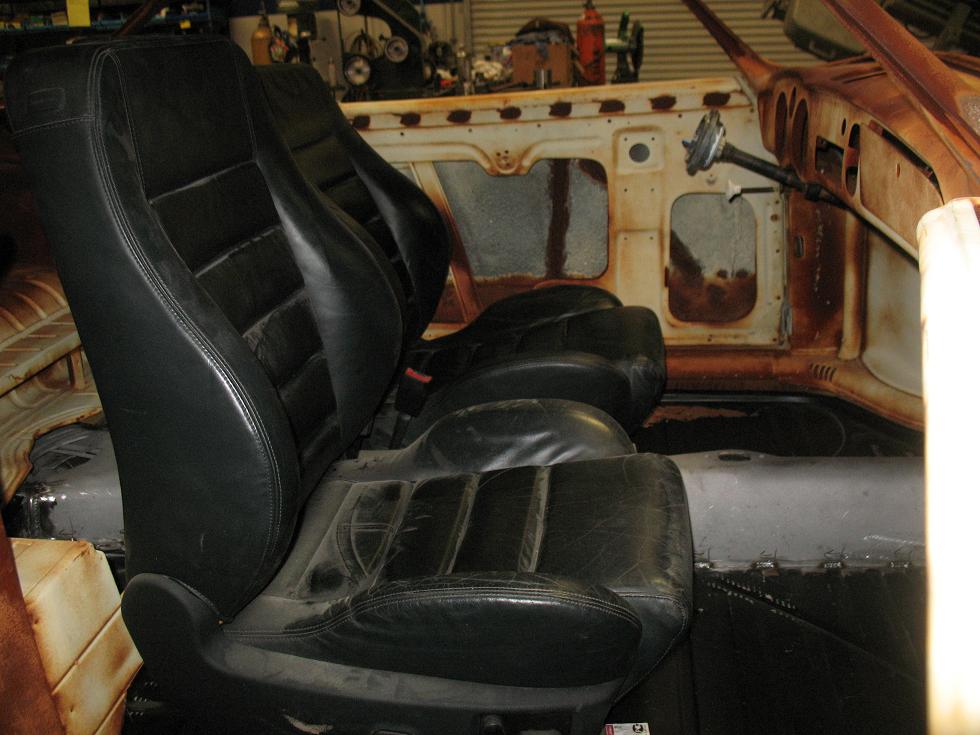

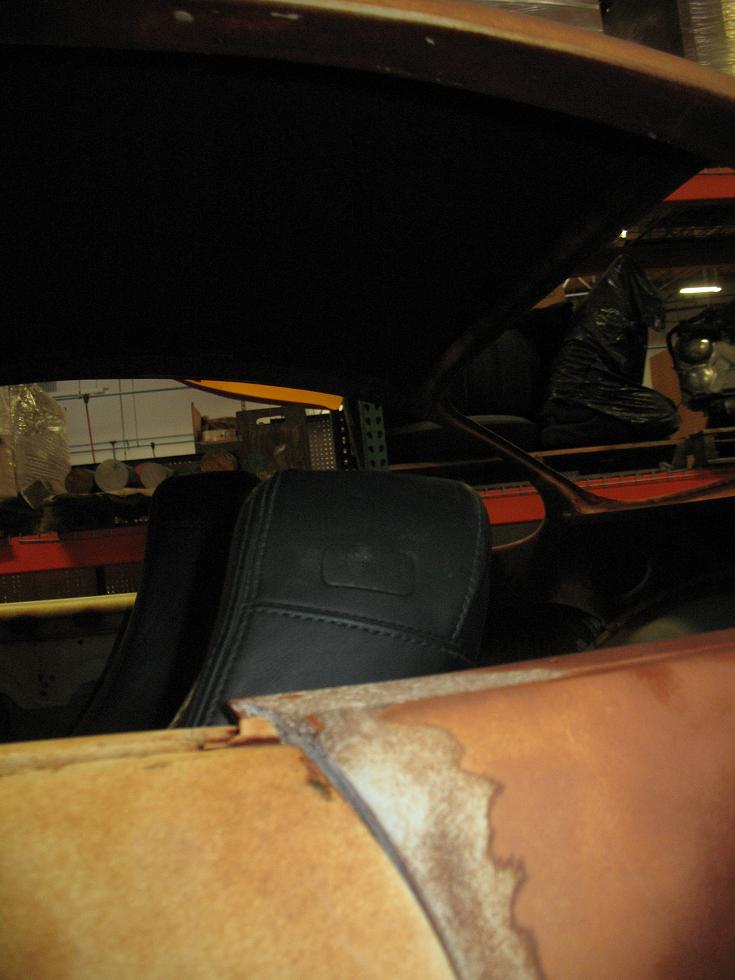

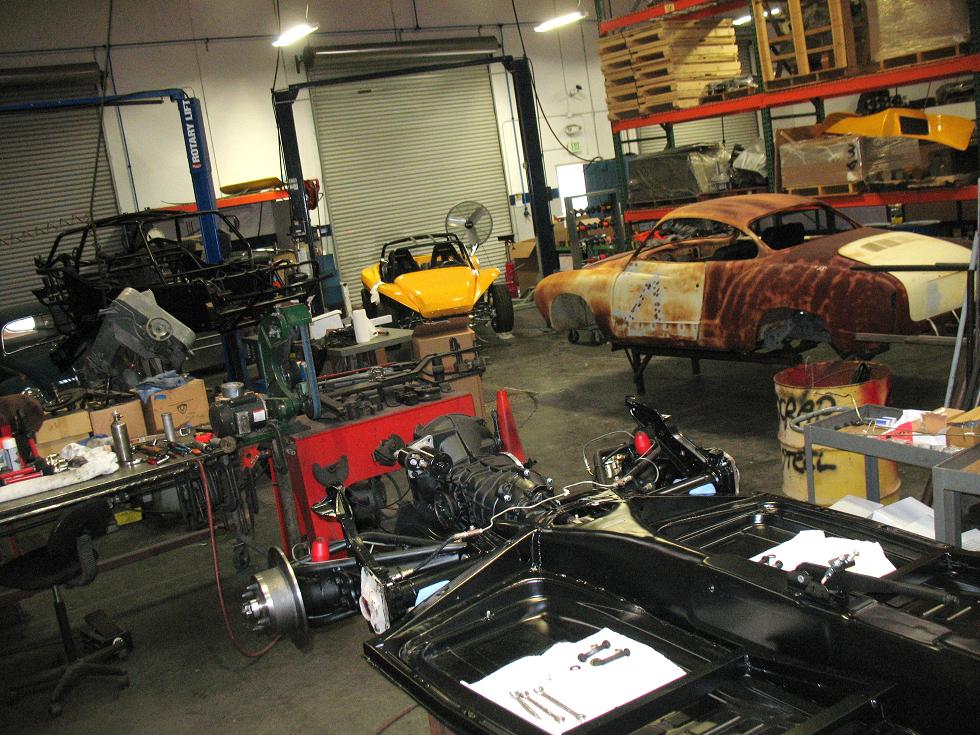

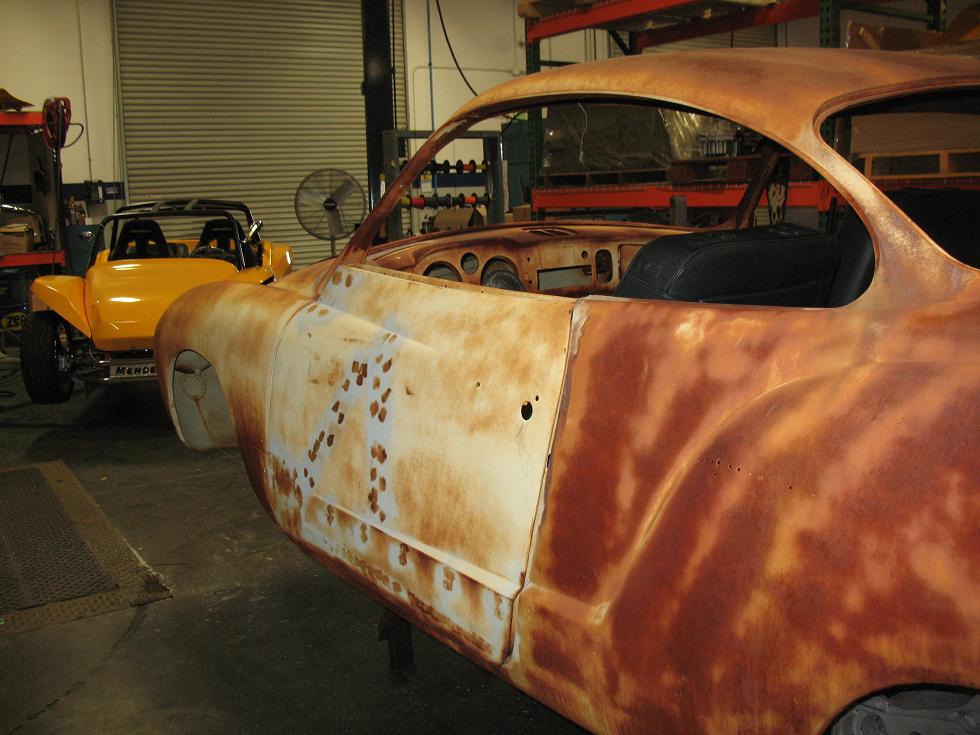

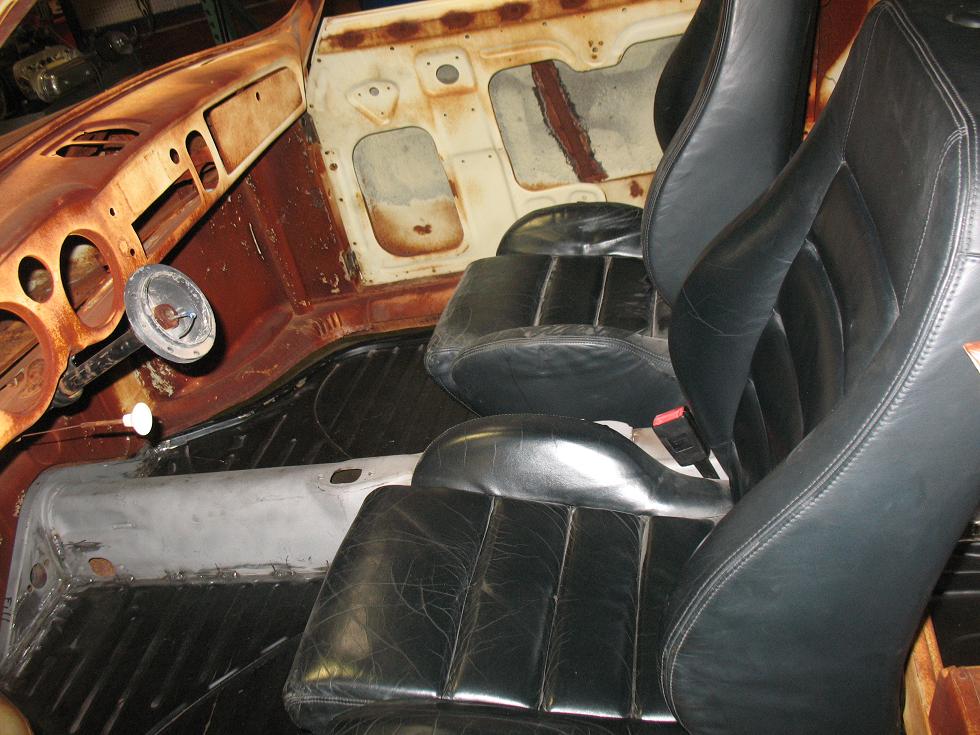

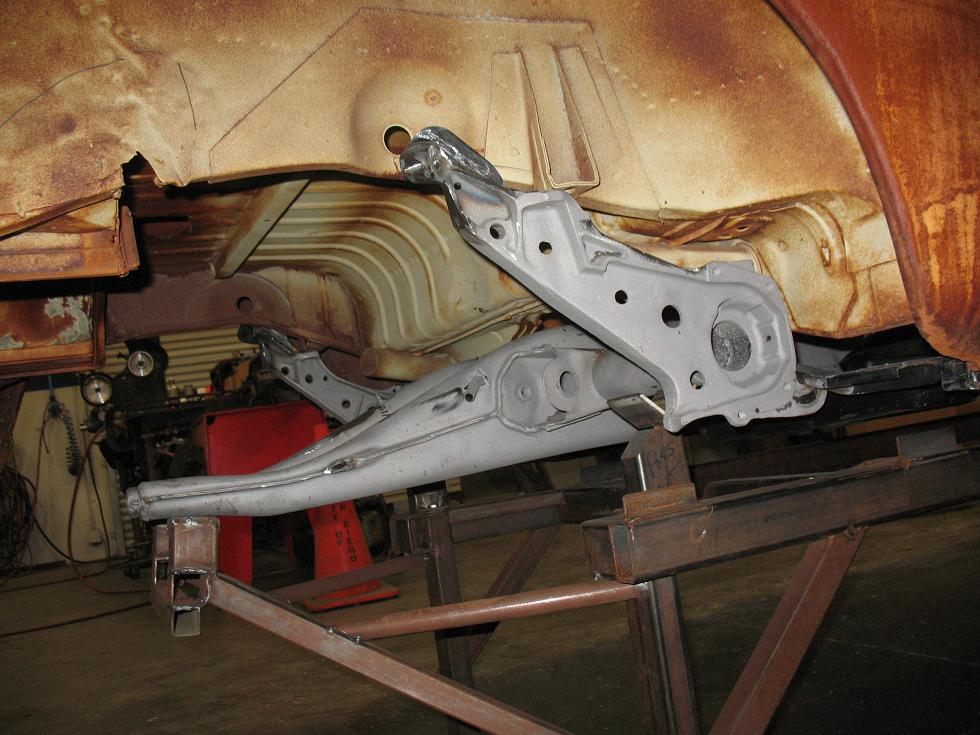

Mendeola testing the body/chassis fitment. It actually looks like a real car in the picture of the shop. Kevin also put both seats in the car to see how they looked. Still too big.
